visualizeR

What a color! What a viz!

visualizeR proposes some utils to get REACH and AGORA colors, ready-to-go color palettes, and a few visualization functions (horizontal hist graph for instance).

Installation

You can install the last version of visualizeR from GitHub with:

# install.packages("devtools")
devtools::install_github("gnoblet/visualizeR", build_vignettes = TRUE)

Roadmap

Roadmap is as follows:

• Add IMPACT’s colors
• Add all color palettes from the internal documentation
• There remains to be added more-than-7-color palettes and black color palettes
• Add new types of visualization (e.g. dumbbell plot)
• Use examples
• Add some ease-map functions
• Add some interactive functions (maps and graphs)

Request

Please, do not hesitate to pull request any new viz or colors or color palettes, or to email request any change (guillaume.noblet@reach-initiative.org or gnoblet@zaclys.net).

Colors

Color palettes for REACH, AGORA and IMPACT are available. Functions to access colors and palettes are cols_initiative() or pal_initiative(). For now, the initiative with the most colors and color palettes is REACH. Feel free to pull requests new AGORA and IMPACT colors.

library(visualizeR)

# Get all saved REACH colors, named
cols_reach(unnamed = F)[1:10]
#>        white        black    main_grey     main_red main_lt_grey   main_beige
#>    "#FFFFFF"    "#000000"    "#58585A"    "#EE5859"    "#C7C8CA"    "#D2CBB8"
#>     iroise_1     iroise_2     iroise_3     iroise_4
#>    "#DFECEF"    "#B1D7E0"    "#699DA3"    "#236A7A"

# Extract a color palette as hexadecimal codes and reversed
pal_reach(palette = "main", reversed = TRUE, color_ramp_palette = FALSE)
#> [1] "#58585A" "#EE5859" "#C7C8CA" "#D2CBB8"

# Get all color palettes names
pal_reach(show_palettes = T)
#>  [1] "main"            "primary"         "secondary"       "two_dots"
#>  [5] "two_dots_flashy" "red_main"        "red_main_5"      "red_alt"
#>  [9] "red_alt_5"       "iroise"          "iroise_5"        "discrete_6"
#> [13] "red_2"           "red_3"           "red_4"           "red_5"
#> [17] "red_6"           "red_7"           "green_2"         "green_3"
#> [21] "green_4"         "green_5"         "green_6"         "green_7"
#> [25] "artichoke_2"     "artichoke_3"     "artichoke_4"     "artichoke_5"
#> [29] "artichoke_6"     "artichoke_7"     "blue_2"          "blue_3"
#> [33] "blue_4"          "blue_5"          "blue_6"          "blue_7"

Charts

Example 1: Bar chart, already REACH themed

library(visualizeR)
library(palmerpenguins)
library(dplyr)

df <- penguins |>
  group_by(island, species) |>
  summarize(
    mean_bl = mean(bill_length_mm, na.rm = T),
    mean_fl = mean(flipper_length_mm, na.rm = T)) |>
  ungroup()

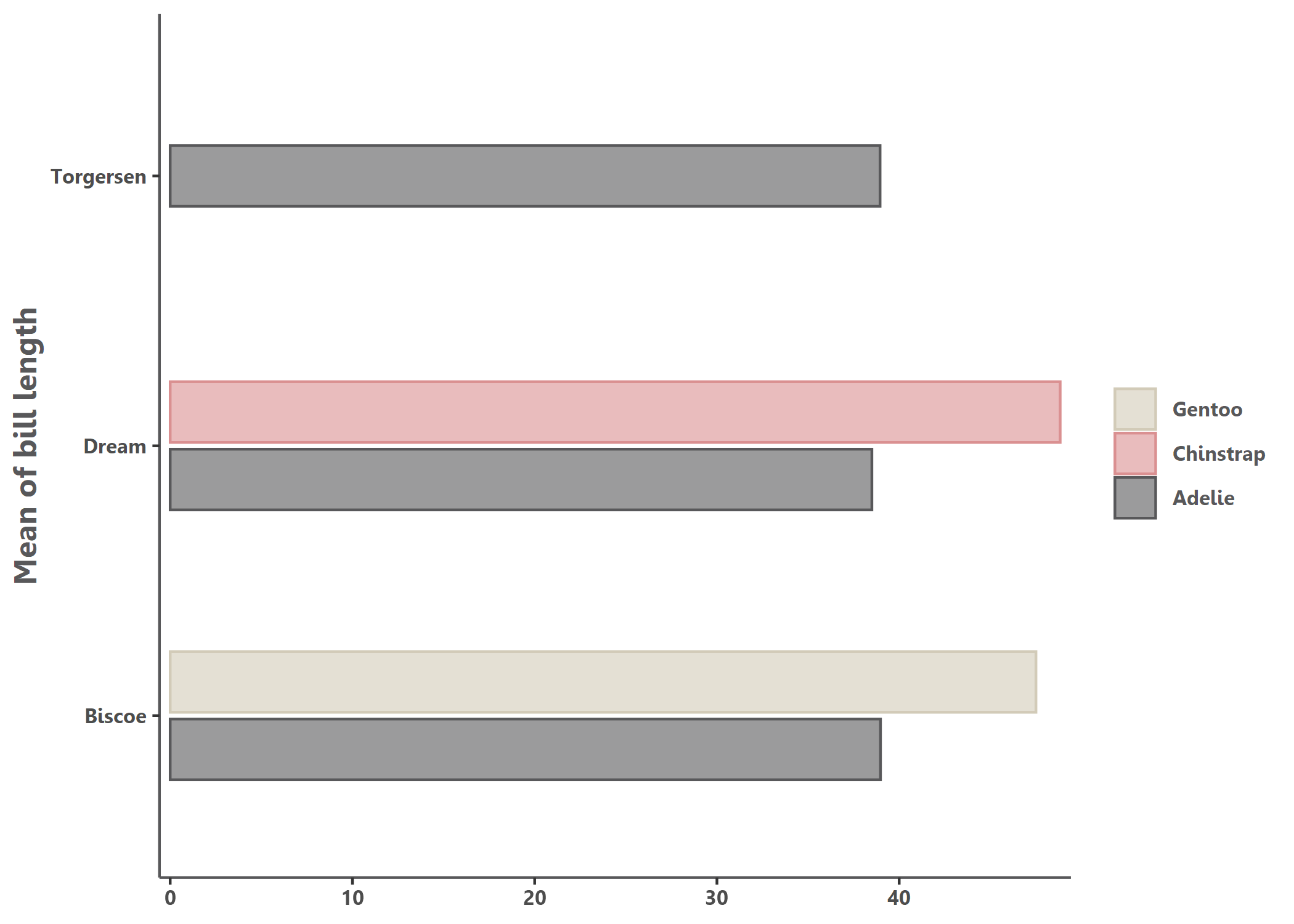

# Simple bar chart by group with some alpha transparency
bar(df, island, mean_bl, species, percent = FALSE, alpha = 0.6, x_title = "Mean of bill length")

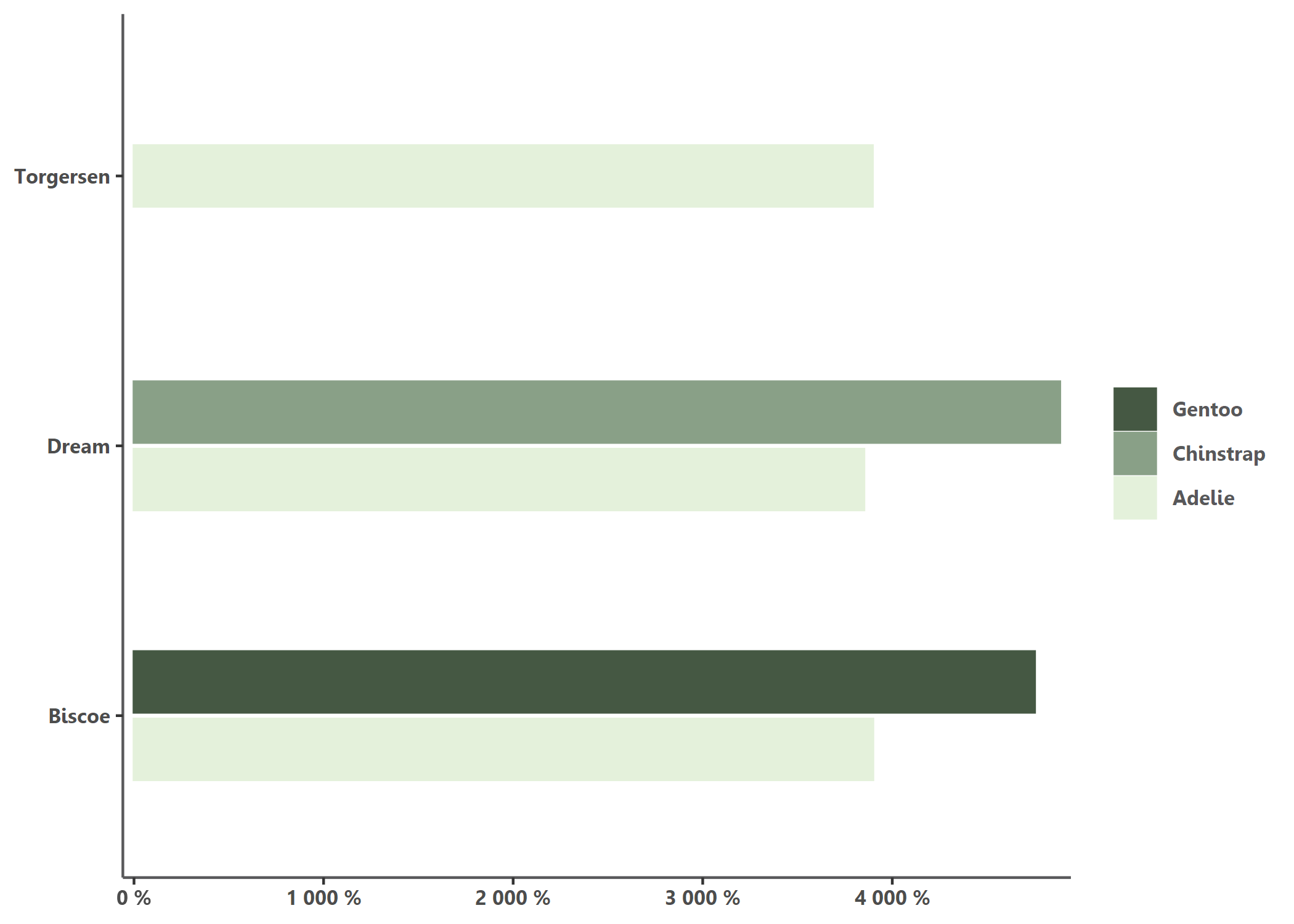

# Using another color palette through `theme_reach()` and changing scale to percent
bar(df, island,mean_bl, species, percent = TRUE, theme = theme_reach(palette = "artichoke_3"))

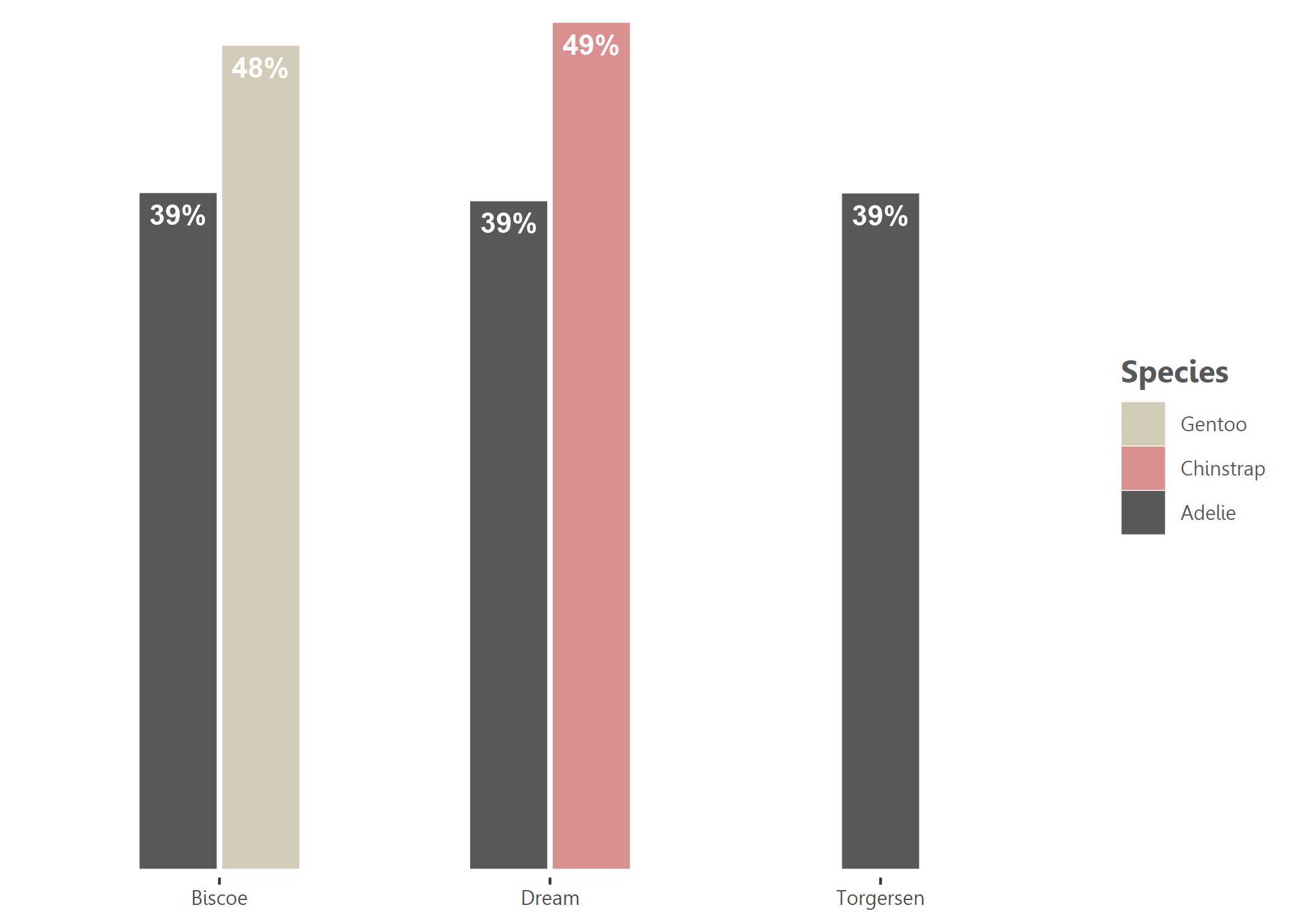

# Not flipped, with text added, group_title, no y-axis and no bold for legend
bar(df, island, mean_bl, species, group_title = "Species", flip = FALSE, add_text = TRUE, add_text_suffix = "%", percent = FALSE, theme = theme_reach(text_font_face = "plain", axis_y = FALSE))

Example 2: Point chart, already REACH themed

At this stage, point_reach() only supports categorical grouping colors with the group arg.

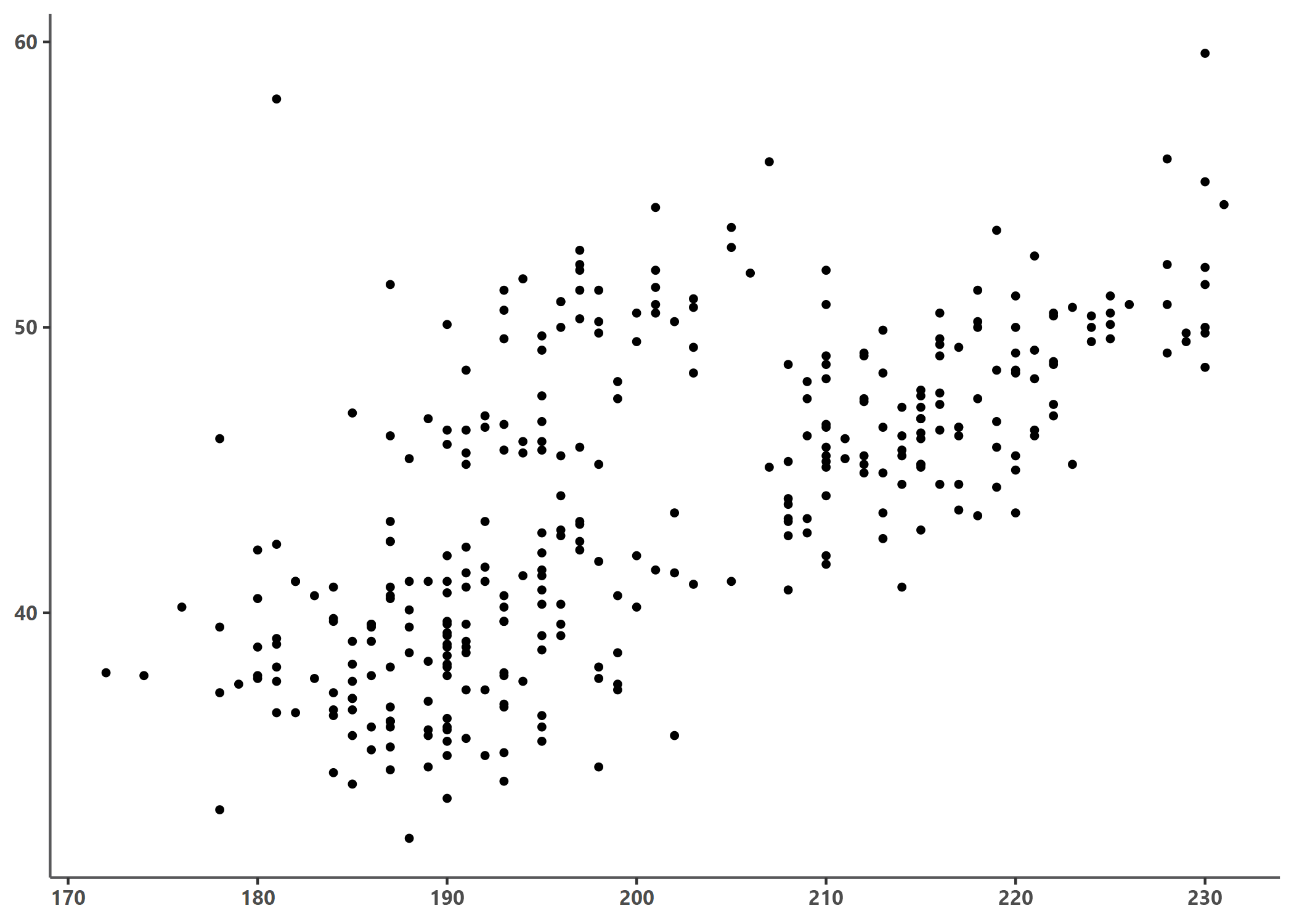

# Simple point chart
point(penguins, bill_length_mm, flipper_length_mm)

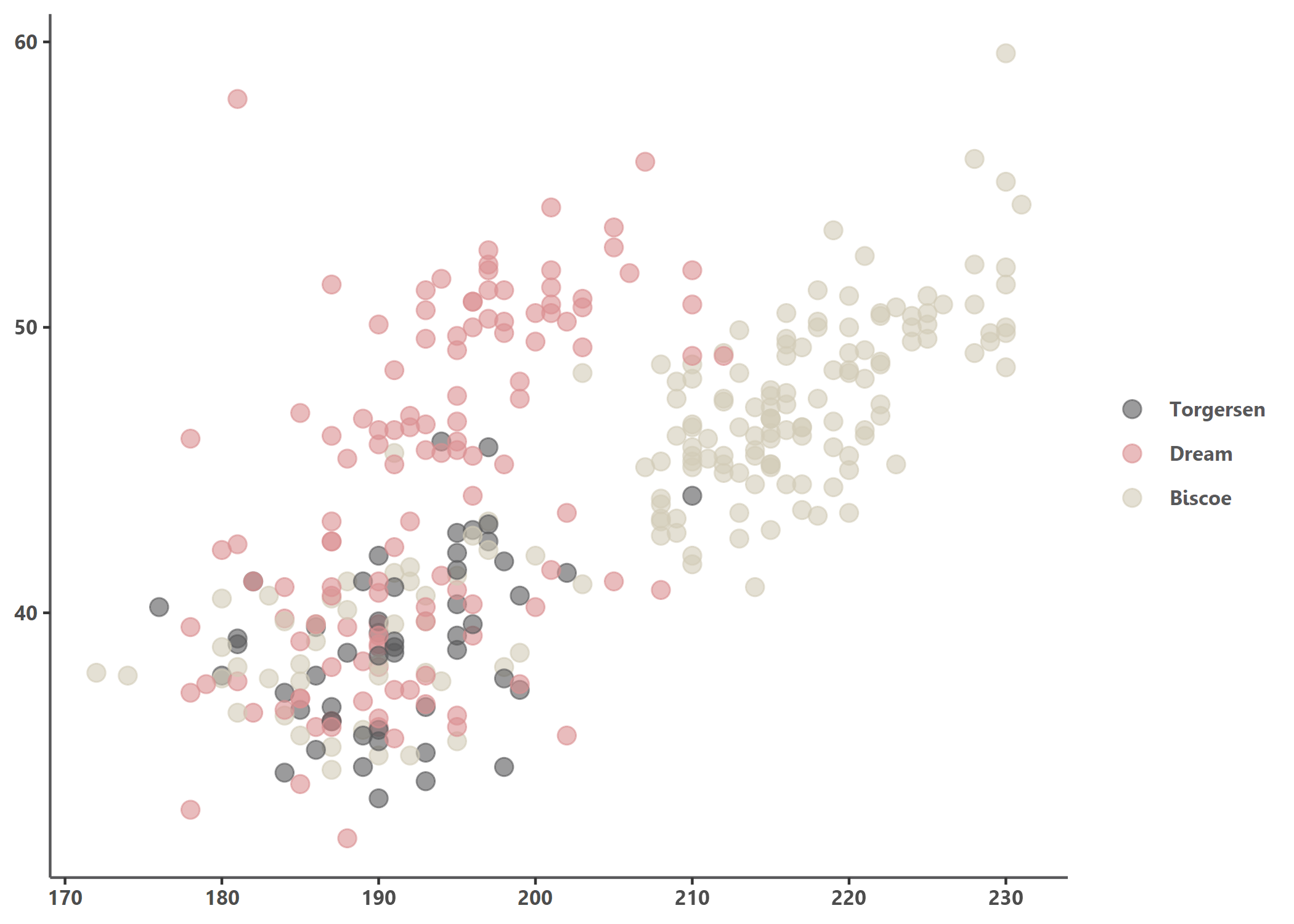

# Point chart with grouping colors, greater dot size, some transparency, reversed color palette
point(penguins, bill_length_mm, flipper_length_mm, island, alpha = 0.6, size = 3, theme = theme_reach(reverse = TRUE))

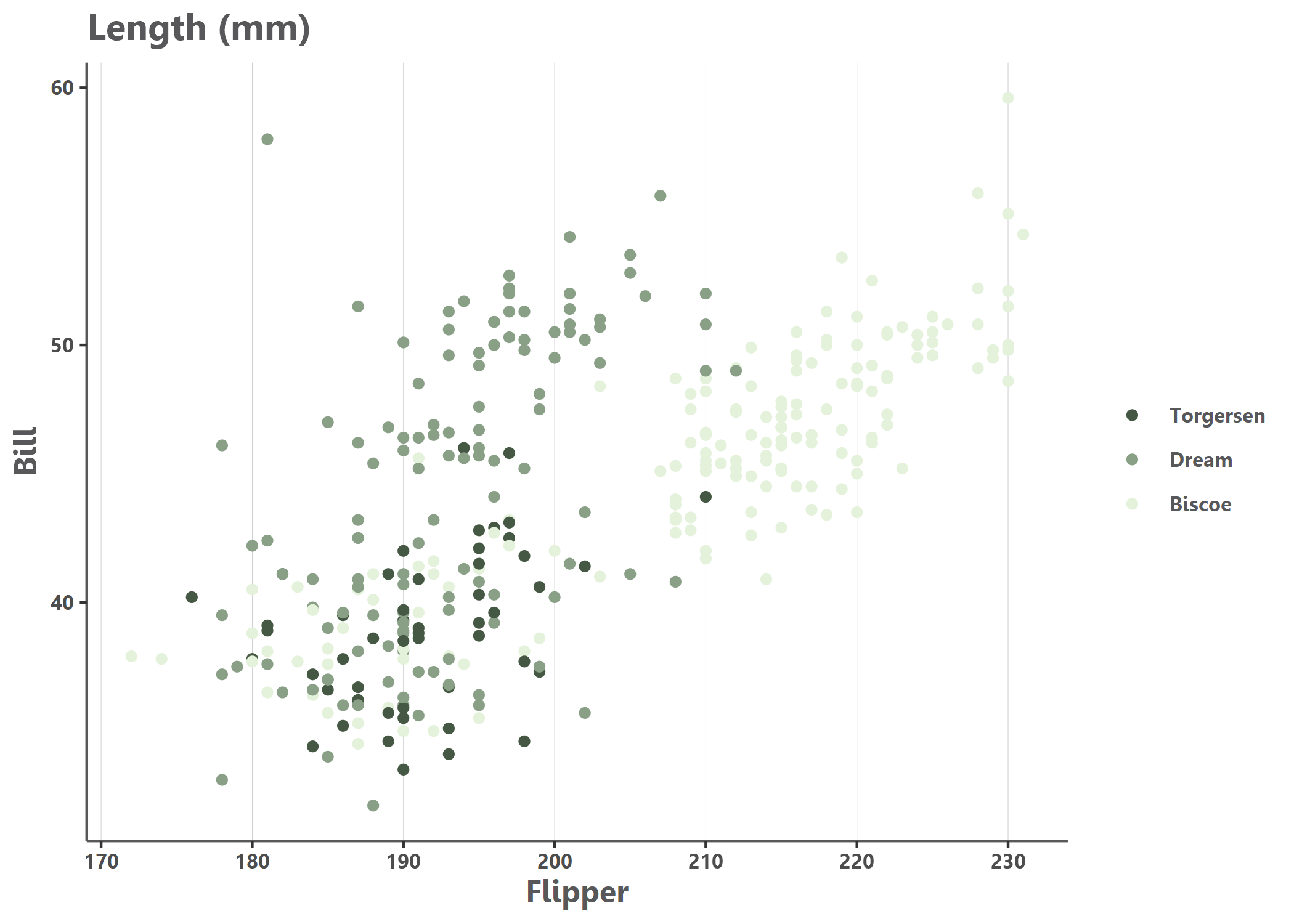

# Using another color palettes
point(penguins, bill_length_mm, flipper_length_mm, island, size = 1.5, x_title = "Bill", y_title = "Flipper", title = "Length (mm)", theme = theme_reach(palette = "artichoke_3", text_font_face = , grid_x = T))

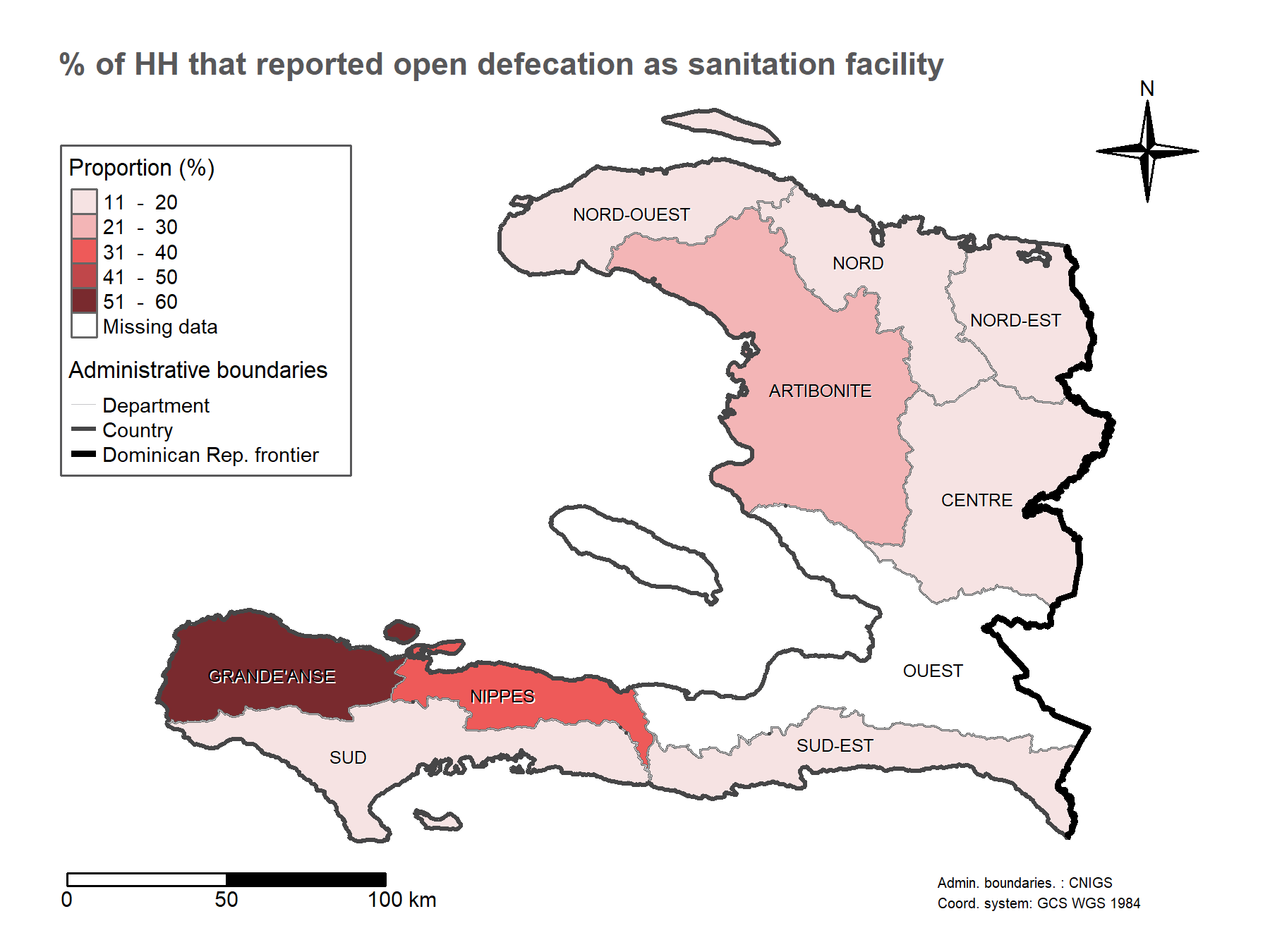

Maps

# Add indicator layer
# - based on "pretty" classes and title "Proportion (%)"
# - buffer to add a 10% around the bounding box
map <- add_indicator_layer(
  indicator_admin1,
  opn_dfc,
  buffer = 0.1) +
  # Layout - some defaults - add the map title
  add_layout("% of HH that reported open defecation as sanitation facility") +
  # Admin boundaries as list of shape files (lines) and colors, line widths and labels as vectors
  add_admin_boundaries(
    lines = list(line_admin1, border_admin0, frontier_admin0),
    colors = cols_reach("main_lt_grey", "dk_grey", "black"),
    lwds = c(0.5, 2, 3),
    labels = c("Department", "Country", "Dominican Rep. frontier"),
    title = "Administrative boundaries") +
  # Add text labels - centered on admin 1 centroids
  add_admin_labels(centroid_admin1, ADM1_FR_UPPER) +
  # Add a compass
  add_compass() +
  # Add a scale bar
  add_scale_bar() +
  # Add credits
  add_credits("Admin. boundaries. : CNIGS \nCoord. system: GCS WGS 1984")
